For customization purposes, the piston's rack is not yet epoxied in place!
Even though it may be tightly fitted, epoxy is required to bond the rack and body prior to installation.
Taking the AEG piston into the future! The Jaeger sets a new standard for AEG pistons. It is truly indestructible and will withstand any build thrown at it.
New Jaeger Lite Specifications:
- MJF PA11
For high strength & long term durability - lower friction and higher wear resistance - Molded Hardened Steel Rack
For reduced cost while keeping some of its extreme wear resistance - Oversized Rack Section
To allow more shimming space for the sector gear and durability - Revised Meshing
Between piston rack and sector gear for more compatibility and reduced wear - Wide Piston Rails with Deep Groove
Gives very low wobble in your favorite CNC gearboxes while also being compatible with nearly every gearbox with just a little bit of sanding - Lightweight (17.0 g )
Makes the piston substantially lighter despite the new heavier materials at no cost to its durability compared to other parts - Chamfered Edges
Throughout and full length rail for superior load bearing and 0 chance of spring and gearbox snagging
Usual Jaeger Pistons Specifications:
- Highest pickup tooth and overall cross sectional area
Compared to standard pistons - Proper Tooth Profile
For optimal meshing with most aftermarket sector gears - Correct Height Pickup Tooth
To not interfere with sector gear body - Third Tooth is cut at an angle
To aid AOE correction - not like it's required with this piston anyways - Can be used at high RPS & Joules
Will withstand at least 70rps and 3J with ease
Versions :
- Standard
Typical 67.00mm length - Reinforced
Bigger pick-up tooth support and longer 74.5mm length
(Cannot be used without short stroking standard gears by 3 teeth in standard gearboxes)
The piston is no longer the weakest link.
This beast of a piston is called the “Hunter” for a reason.

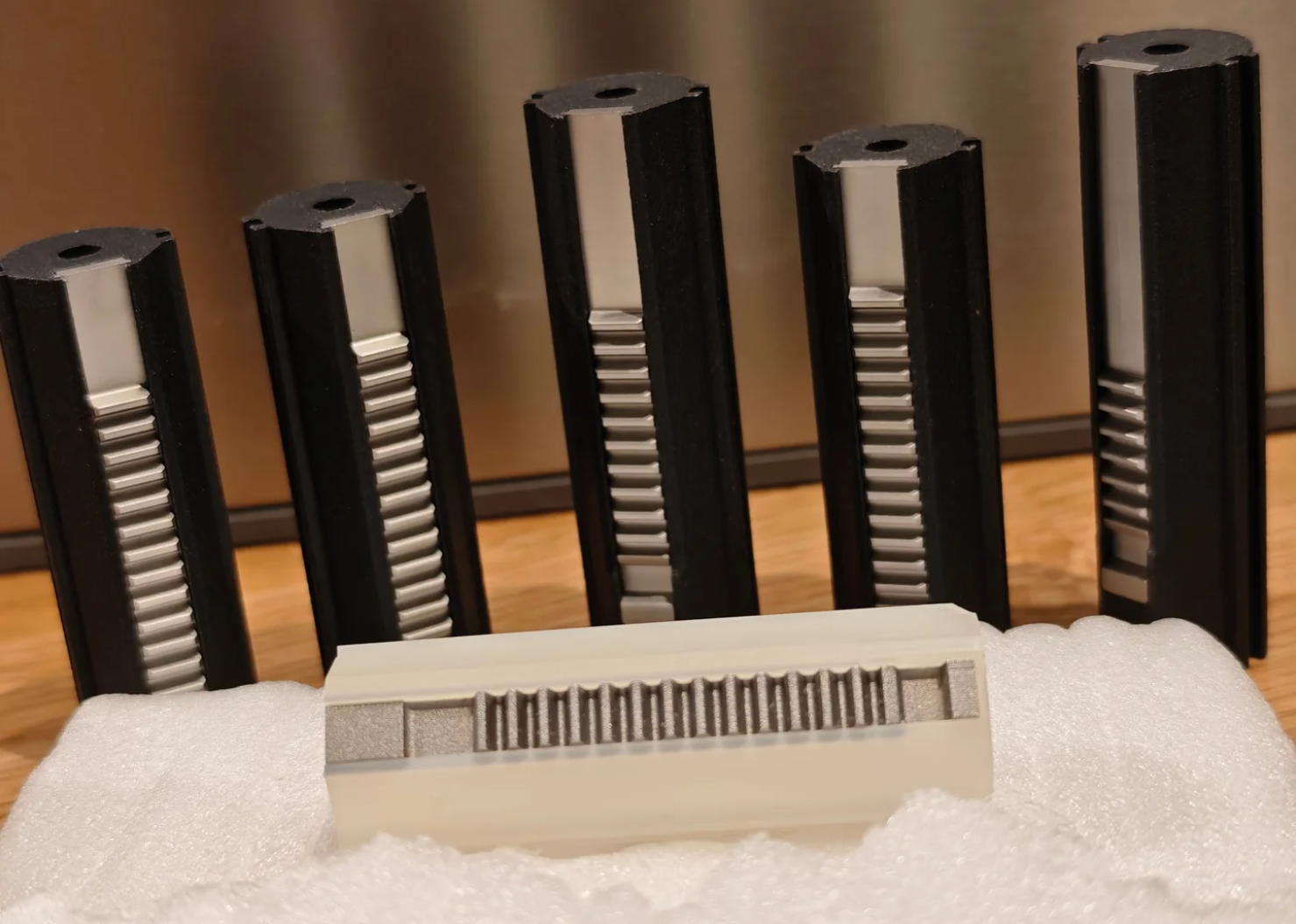

Airsoft Mutation Jaeger Piston (Lite)
SKU: ASM_JLS_F
£29.99Price
